Crystal Quest® Ultrafiltration
Cater Your Unique Hydration
Ultrafiltration (also called Nanofiltration) is a membrane filtration process similar to Reverse Osmosis, using hydrostatic pressure to force water through a semi-permeable membrane.
Learn MoreCommercial Applications
Food and Beverages
Removes bacteria and suspended solids while preserving essential flavors and nutrients.
Pharmaceutical Manufacturing
Ensures high-purity water and sterile environments by filtering out viruses and pyrogens.
Cooling Tower Filtration
Pre-treats boiler feedwater to prevent scaling, corrosion, and system fouling.
Bottled Water
Delivers consistent, crystal-clear water by eliminating particles, microorganisms, and turbidity.
Wastewater Reuse Systems
Enables water reclamation by removing fine solids and pathogens before disinfection.
Power Generation Facilities
Pre-treats boiler feedwater to prevent scaling, corrosion, and system fouling.
Semiconductor & Electronics
Provides high-purity water critical for rinsing and wafer cleaning processes.
Breweries & Distilleries
Extends equipment life and reduces maintenance by minimizing biofouling and particulates.
How It Works

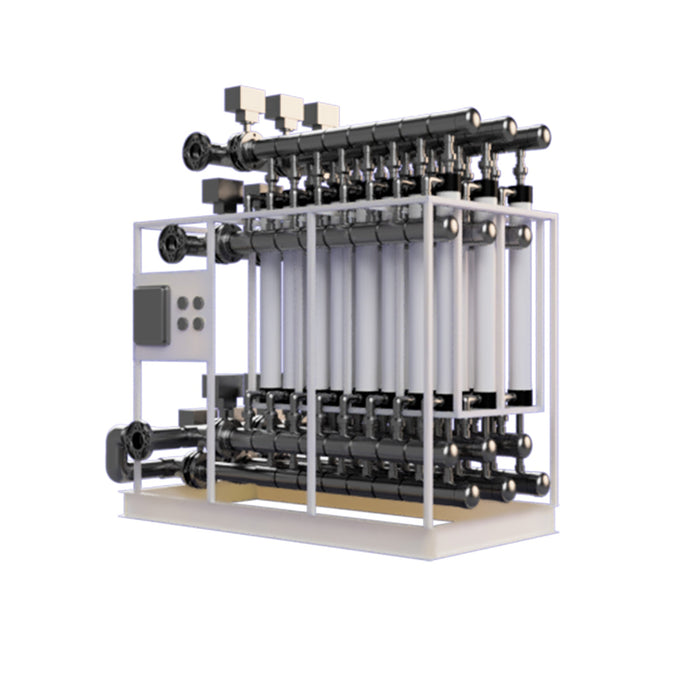

Benefits of Crystal Quest® Commercial Ultrafiltration Systems
Ultrafiltration systems utilize advanced hollow fiber membranes engineered for exceptional efficiency in removing endotoxins, microplastics, proteins, silica, silt, smog particles and viruses. Each module delivers a high active surface area—up to 538 ft²—enabling elevated water production rates while maintaining reliability and performance.
Our systems are designed around a simplified process and control architecture, offering a range of operational and environmental advantages:
- No chemical additives required: Eliminates the need for coagulants, flocculants, disinfectants, or pH adjustment.
- Membrane-based filtration: Uses precise size-exclusion rather than conventional media depth filtration.
- Consistent water quality: Delivers reliable removal of particulates and microorganisms.
- Compact footprint: Optimized for space efficiency in commercial and industrial applications.
- Streamlined automation: Simple control integration reduces operational complexity.
- Environmentally responsible: Minimal chemical use and waste generation.
System Specifications
| Model # | Surface Water GPD | Seawater GPD | Ground Water GPD | # of UF |
|---|---|---|---|---|
| CQE-UF-010K | 10,080 | 15,840 | 25,920 | 1 |
| CQE-UF-020K | 20,160 | 30,956 | 50,655 | 2 |
| CQE-UF-040K | 40,320 | 63,541 | 130,976 | 4 |
| CQE-UF-060K | 60,480 | 94,497 | 154,631 | 6 |
| CQE-UF-080K | 80,640 | 127,082 | 207,952 | 8 |
| CQE-UF-100K | 100,800 | 158,038 | 258,608 | 10 |
| CQE-UF-120K | 120,960 | 190,623 | 311,929 | 12 |
| CQE-UF-160K | 161,280 | 254,184 | 415,905 | 16 |
| CQE-UF-200K | 201,600 | 316,076 | 517,215 | 20 |
| CQE-UF-260K | 262,080 | 412,202 | 674,512 | 26 |
| CQE-UF-300K | 302,400 | 475,743 | 778,489 | 30 |
| CQE-UF-400K | 403,200 | 633,781 | 1,037,096 | 40 |
